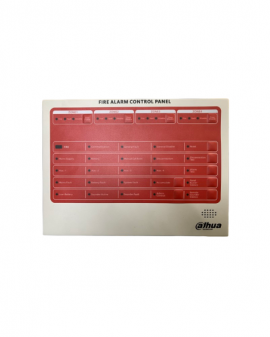

Tủ trung tâm báo cháy thông thường 4 zone
Mô tả sản phẩm
THÔNG TIN SẢN PHẨM
DHI-HY-C102-4 Conventional Fire Alarm Control Panel is designed and manufactured in compliance with EN54 Parts 2 & 4 requirements. As the core of conventional fire alarm system, it cooperates with smoke detectors, heat detectors, sounder strobes, and manual call points to construct a fire alarm control system. With Ethernet, RS-485, and other IoT interfaces, it can integrate with other panels and connect to platforms.
THÔNG SỐ KỸ THUẬT
| Number of Zones | 4 |
| Zone Capacity | 32 detectors per zone |
| Main Power | AC90-240V/50Hz, 60Hz |
| Backup Power | 2 lead-acid batteries (12V/5Ah each) |
| Output Current | 2A |
| Sounder Output |
Fault: 50dB Alarm: 60dB |
| Fire Bell Output | DC 28V/500mA |
| Dimensions | 310.0 mm×73.0 mm×227.0 mm (12.20″ × 2.87″ × 8.94″) |
| Weight |
3.5 kg 5 kg (with 2 batteries) |
| Operating Temperature | –10°C to +50°C (+14°F to +122°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Protection Grade | IP30 |
| Installation | Wall mount |
| Compliance Standard | EN54-2,EN54-4 |
